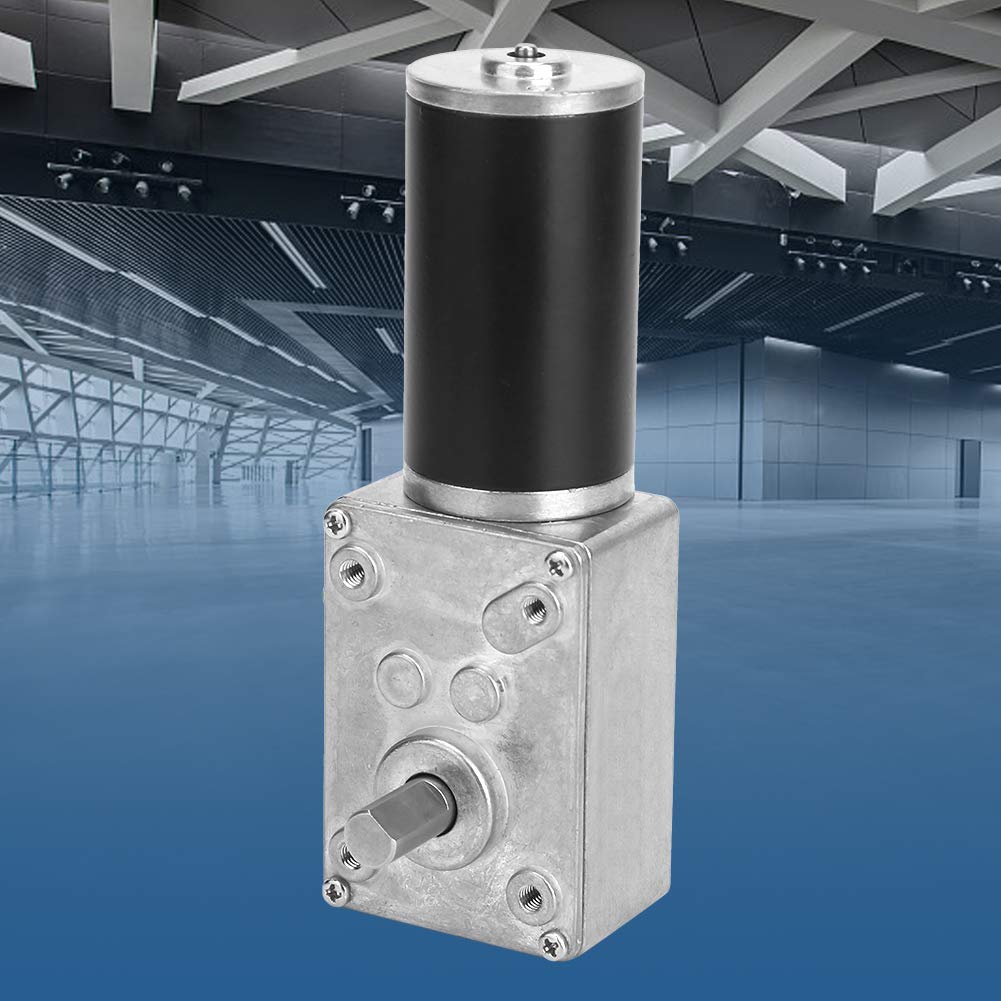

24V DC Worm Gear Motor, 15RPM 70kg.cm 8mm High Torque Speed Reduction Motors Turbine Electric Gearbox Motor with Cable for DIY Mini Geared Motors

Specification:Voltage: 24VOptional Style: 230RPM, 130RPM, 80RPM, 40RPM, 20RPM, 15RPM, 10RPM, 5RPMVoltage V 24 24 24 24 24 24 24 24Rated speed RPM 230 130 80 40 20 15 10 5Rated torsion Kg.cm 3.4 6.2 10 20 40 60 70 70Rated current A ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6 ≤0.6Maximum torsion Kg.cm 8 15 25 51 70 70 70 70Stop current A 2 2 2 2 2 2 2 2Package List:1 * Worm Gear Motor Instructions for Use:1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time.2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.

• High Quality Material - The reversible worm gear motor is made of high quality material, durable and not easy to wear and damage, long service life.
• Superior Performance - 31mm high quality copper tube motor, small volume and big torsion, can be widely used in various of occasions that require special installation size.
• Professional Manufacturing - Ball bearing design enhances the wear resistance of shaft, All metal gears are impact resistant, long life and low noise.
• Wide Applications - Generally used in curtain machines, advertising equipment, window openers and smart devices
• Good After Sales Service - Please feel free to contact us for your any problems about our product, we will provide you with a satisfactory answer.
